Caratteristiche

Specificazioni

Type: Multi-Function Packaging Machine, Semi-Automatic

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops

Showroom Location: Egypt, Morocco, UAE, Colombia

Condition: New

Function: Sealing

Application: Food, Beverage, Commodity, Medical, Chemical, APPAREL

Packaging Type: Stand-up Pouch

Packaging Material: Plastic, Paper, Metal, Glass, Wood

Automatic Grade: Semi-automatic

Driven Type: Electric

Voltage: 380V/220V, 380V/220V

Dimension(L*W*H): 1050*720*940(mm)

Warranty: 1 Year

Key Selling Points: Easy to Operate

Marketing Type: Ordinary Product

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Motor, Pump, Gear, Engine

Production Capacity: 7bag/min

Name: sealer tray sealing machine MAP modified atmosphere packaging machine

Related machine: vacuum packing machine

Capacity: 1-4 cycles /min

chamber size: 430*305*80(mm)

Overall size: 1050*720*940(mm)

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Egypt, United States, Italy

After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

Certificazione: CE

Informazioni di base

Certificazione: CE

Termini di pagamento e spedizione

Packaging Details: wood case

Descrizione di prodotto

Product Description

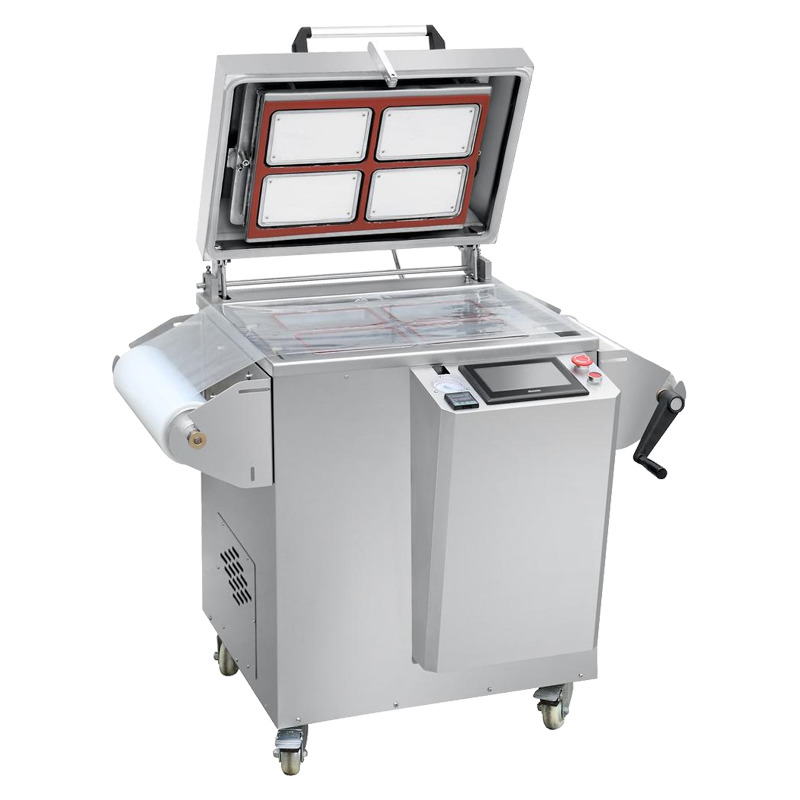

DMP-430 vacuum modified atmosphere packaging machine is based on the combination of vacuum packaging machine and modified atmosphere packaging machine. It has the advantages of small size, full function, novel structure and stable performance.

We developed a vacuum-controlled fresh-keeping packaging machine for chain stores, supermarkets, specialty stores, laboratories, and small food manufacturers. The vacuum chamber is used to vacuum the closed vacuum chamber by using a vacuum pump, so that the vacuum chamber is made to have a high degree of vacuum, and then filled with a mixed gas suitable for food deferred preservation, and the food that has been packaged in the atmosphere is better maintained. The original taste, color, shape and nutrition of the food can also achieve a longer shelf life.

Model	EMAP-430A
Chamber size	430 X 305X 80mm
Tray height	80 mm
Film size	/
Vacuum pump capacity	63 m^3/H
Max vacuum degree	0.1mbar
Gas supply	0.8 mpa
Voltage	220V/380V 50HZ/60HZ
Capacity	3.5 KW
Weight	350KG
Overall size	1050 X 720 X 940 mm
Output	1-8 Trays / min

1. 304 stainless body

The equipment is made of 304 stainless steel, which is corrosion-resistant, rust-resistant, and durable, ensuring that the machine operates under stable conditions.

2. Matching gas mixing ratio

The machine is equipped with a gas mixing proportional device, which is filled with nitrogen, oxygen, carbon dioxide and other gases in the tray, and mixed according to the video characteristics to keep the food fresh and preserve color.

3. Vacuum replacement, mold changeable

In the state where the vacuum chamber is closed, the gas is replaced by a vacuum pump, and substantially no air remains. Replaceable molds can be replaced as needed. multi-purpose, can meet the demandd of different products.

4.Manual waste film holder

The waste film holder is used to provide convenience for the user, easy to disassemble, and the non-film is concentrated on the bracket to maintain the sanitary environment of the workshop.

5. Emergency stop switch

The equipment is equipped with an emergency stop switch to ensure personal safety in case of abnormal conditions.

6. Multi-purpose

It can be boxed or bagged. After the boxed mold is taken out, the heating strip and the upper film holder can be used to package the packaged food, vacuum or inflated to meet different needs and save costs.
